KOKONI SOTA 3D Printer (Pre-Order- Shipping in February)

¥152,200
inkl. MwSt.

SKU: KOKONI-SOTA
Verkäufer: KOKONI 3D Printing

Version: SOTA
FREE SHIPPING
FREE RETURNS
SUPPORT 24/7
SECURED PAYMENTS
Erhalten Sie KOSTENLOSEN VERSAND, wenn der Scheckbetrag mehr als ¥11,793 beträgt
Fragen Sie nach diesem Produkt
Product Warranty

Garantiert sichere Kasse

American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa
Description
Specification
Videos Showcase
FAQ
Reviews



Shipping Schedule: The SOTA (main unit) will arrive at foreign warehouse at late Feburary. For those who purchase SOTA and SOTA combo, the delivery begins once after the SOTA have arrived at our foreign warehouse. The Flexi-Filament Tower is scheduled to arrive one month later.

Basic Info

KOKONI SOTA

Package Dimensions (WxDxH)

580x580x760mm

Product Dimensions (WxDxH)

420x420x693mm

Gross Weight

31KG

Net Weight

24KG

Printing Size (Inch)

8.27(X)*7.87(Y)*9.06(Z)

Printing Size (mm)

210(X)* 200(Y) *230(Z)

Printer

Material

Metal

Casing

Plastic Full Enclosure

XY Axis

High-Precision Linear Rail (Dust Proof)

Z Axis

High-Precision Ball Screw

Power

AC100-250V, 50/60Hz; 3.5A/115VAC,1.8A/220VAC
Rated Power 300Watt.

Print Bed

Print Surface

Glass (Coated and Heated)*1

Automatic Leveling

Auto-Bed Leveling

Printing Speed

Max Movement Speed

600mm/s

Max Acceleration

21000mm/s^2

Cooling & Filtering

Chamber Cooling Fan

√ (with speed control)

Filter

Activated Carbon Filter

Filament

Max Filament Num.

7 (2 + 5 with Flexi-Filament Tower)

Filament Diameter

1.75 mm

Filament Supported*3

PLA, PETG, ABS, TPU, etc. Recommend to use KOKONI Official filament

 Intelligent Features

Sensor

Optical Radar

Built-In L ED

√

Built-In Camera

1080p Timelapse and remote monitoring camera & Al Recognition

Filament Detection

√

Electronic Device

Application Processor

Quad-Core1.8GHz & 1.0 TOPS NPU

OTA Update

√

Communication

WiFi / Bluetooth / USB

Operational Interface

KOKONI3D APP/ PC Software / 3.5" Touch Screen

Software

Slicer Software

KOKONI 3D App & KOKONI 3D Plugin,

Support mainstream modeling software such as Solidworks, SketchUp, CATIA, Blender. Support third party slicers which export standard G-code such as Orca slicer, Prusaslicer, Cura and Slic3r. But some functions may not be supported while using thirdparty slicers

Input Format

STL / OBJ / 3MF / JPG / PNG

3DS, FBX, STEP, IGES, X_T, skp, CATPart, CATProduct, SLDPRT, SLDASM, blend.

( Need to use KOKONI's plugin for third party 3D modeling software )

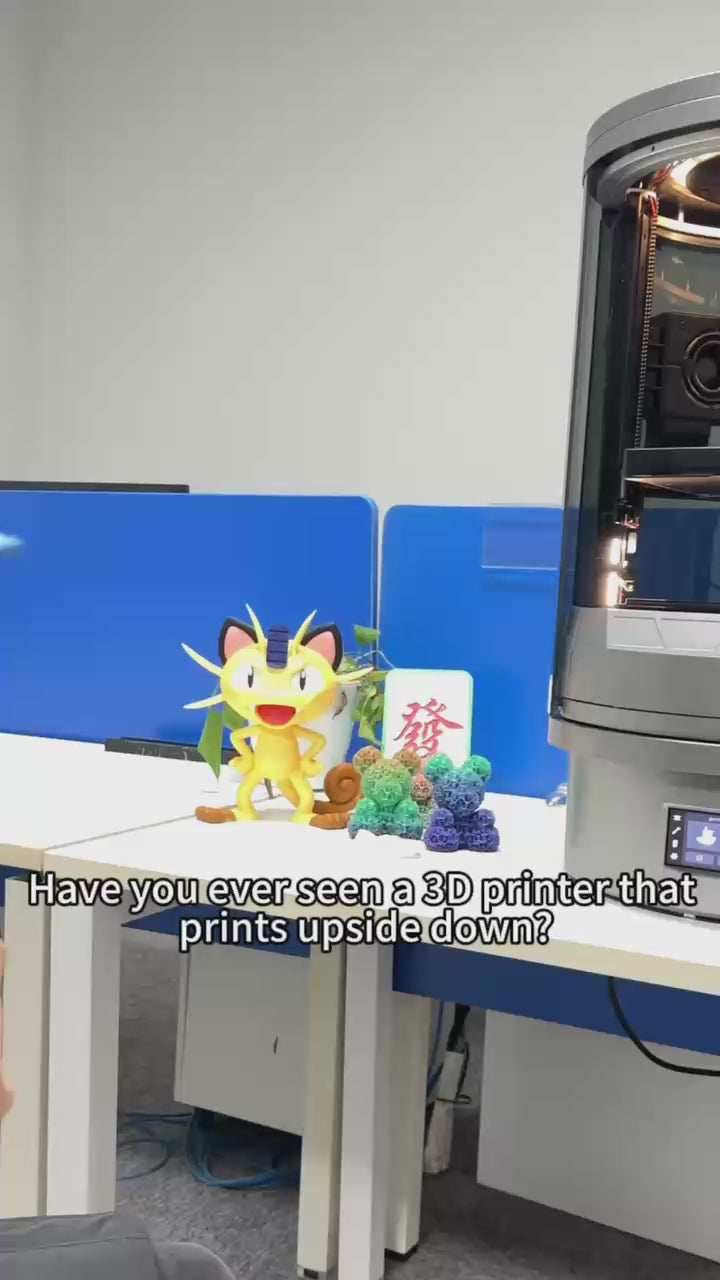

Why Upside-Down?
KOKONI SOTA is designed to be a quite performance monster. By mounting heavy moving part in the bottom, which lowers the centre of gravity would help improve stability, SOTA’s design achieves a close-to-zero vibration and effectively increases the stability and printing speed. Moreover, it can save support material for some models.
Frequent Questions:
Why a cylinder? Is it space efficient?
The product size is 420*420*693 mm, which is actually smaller in XY dimension compared to some counterparts with similar printing area! We actually saves space for you! (while the printer is taller)
Will printed object drop?
The short answer is "No", the printed bed has a special coating on it and it can hold for more than 4kg of object based on our experiment. Using KOKONI's slicer and with proper leveling (we have auto-leveling function), the printed object is hard to fall down!
What are your advantages compared to other printers in the same price range?
KOKONI SOTA stands out with its sleek design and low vibration (thanks to its upside-down design), ensuring a quieter operation and enhanced print quality. It features dual-color printing, allowing for vibrant, multi-colored creations from a single unit (without the need of another "AMS"). With seamless integration into phone Apps, PC software, and popular 3D CAD design programs, it offers effortless one-click printing. Discover even more capabilities that make this printer a fantastic choice for your 3D printing needs!
Spec
What is the max print size?
The max printing volume is 210*200*230mm
How bed leveling work?
The KOKONI SOTA utilizes an exclusive patented leveling method that employs current sensing instead of traditional pressure sensors, making it resistant to temperature variations. We incorporate a 16-point automatic leveling.
What is the printing speed for the machine?
The maximum moving speed for the toolhead is 600mm/s, the typical printing speed is around 200mm/s to 350mm/s (depending on the quality mode)
What is the printing precision of this printer?
KOKONI SOTA is equipped with high-precision linear rails, ball screws, and fully CNC-milled mounts manufactured to an accuracy of 0.05mm, delivering ultra-high precision in every print. The layer thickness can be chosen from 0.05-0.35mm, the typical accuracy is around 0.2mm (error), depending on the quality mode in the slicer
Is the printing bed replaceable?
Yes, to achieve better printing results, we recommended replacing the printing bed every six months.
What’s the weight of the machine?
The printer is heavier (24kg) compared to some other counterparts, makes it more stable. Be sure to put it in a stable table.
What’s the max temperature for the printing bed?
It’s 110℃
What kind of plug does the KOKONI 3D Printer use?
KOKONI 3D Printer will provide plugs for clients according to different countries.
Filaments
How many colors/materials supported for a single print?
To bring vivid and creative printing, SOTA Combo offers up to 7 materials printing at once, including mainstream filament material, during the printing process.
What material is supported?
PLA, PETG, ABS, TPU, etc. Recommend to use KOKONI official filament for better printing experience. For third-party material, user need to tweak the slicer settings manually.
How the material stored? Do I need an drying box?
We understand that drying is essential for good print quality. The KOKONI SOTA features a built-in bottom material compartment that can hold two rolls of filament and includes space for a desiccant.
When filaments run out, does KOKONI notify me automatically?
KOKONI will automatically stop printing when the filament runs out, and KOKONI App will notify that there are no more materials. We recommend checking the remaining filaments on the App before printing.
What’s the diameter of the filament?
It’s 1.75mm.
App
What interface can I use to control KOKONI SOTA?
3.5"LCD Touch Screen, Android & IOS App, PC Plugin/Software. You can download the Android & iOS App via App stores, and our PC software/plugins at our official website.
Which language does the App support?
English/Chinese/Korean/Japanese/Russian/Spanish/Turkish.
Will the App update regularly?
Sure, our app will be upgraded regularly to improve your printing experience.
How the PC Plugin works?
Support mainstream modeling software such as Solidworks, SketchUp, CATIA, Blender. Install the plugin and enjoy one-click printing!
Does the printer support offline use?
Of course! We prioritize your privacy, which is why KOKONI's slicing software (PC version) can be used offline, allowing you to copy G-code using a USB drive. The KOKONI SOTA supports standard G-code files, and you can also use third-party slicing software.
Can I download the App first before receiving your product?
Yes, you can download our App for preview by searching “KOKONI3D” in App Store and Google Play.
What’s in the box
What is included in the package?
The package will include the main body of KOKONI 3D Printer, Spare Hot End*1, Hot End Wiping*1, Scraper*1, Power Cord*1, Filament Cutter*2, Unclogging Pin Tool*1, Allen Key*2, U disk(8GB)*l, two sample filaments (PLA) and a product manual.
Other Questions
How does the extrusion and color changing work?
The SOTA features two remote extruders (Bowden), a filament retrieval mechanism, a multi-input and output filament selection system, and a direct extruder. The filament stored in the built-in compartment is first sent to the direct extruder via the remote extruders. During the printing process, both the remote and proximal extruders operate simultaneously. When not printing, the filament is retracted, and the retrieval mechanism automatically rewinds the filament to prevent tangling. During the color changing, the bowden extruder pulls out the old filament and feed the new filament in.
Do purging needed?
Yes, purging is still needed. But we designed a special wiper mechanism to collect the waste material in our upside-down setting. So you don't need to worry that waste material pollute the printed object.
Does SOTA offers AI detection?
Yes, we have an 1MP camera that captures the printing process for real-time streaming and also AI error detection.
What kind of motherboards do you use?
We utilize an exclusive motherboard featuring a Single-Core Microprocessor along with a Quad-Core 1.8GHz CPU and a 1.0 TOPS NPU. Our motherboard also includes a dedicated encryption chip to protect your privacy.
What kind of frame structure is the machine?
SOTA use CoreXY structure.
